Description

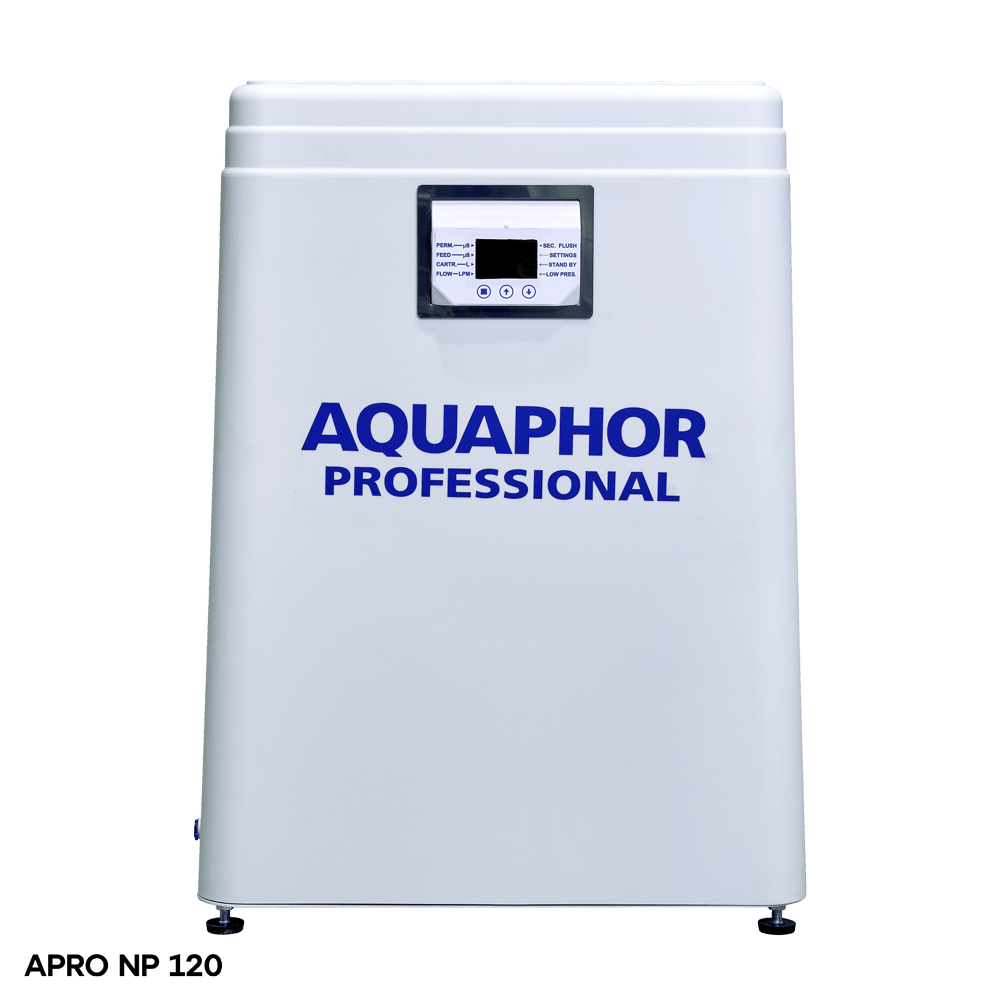

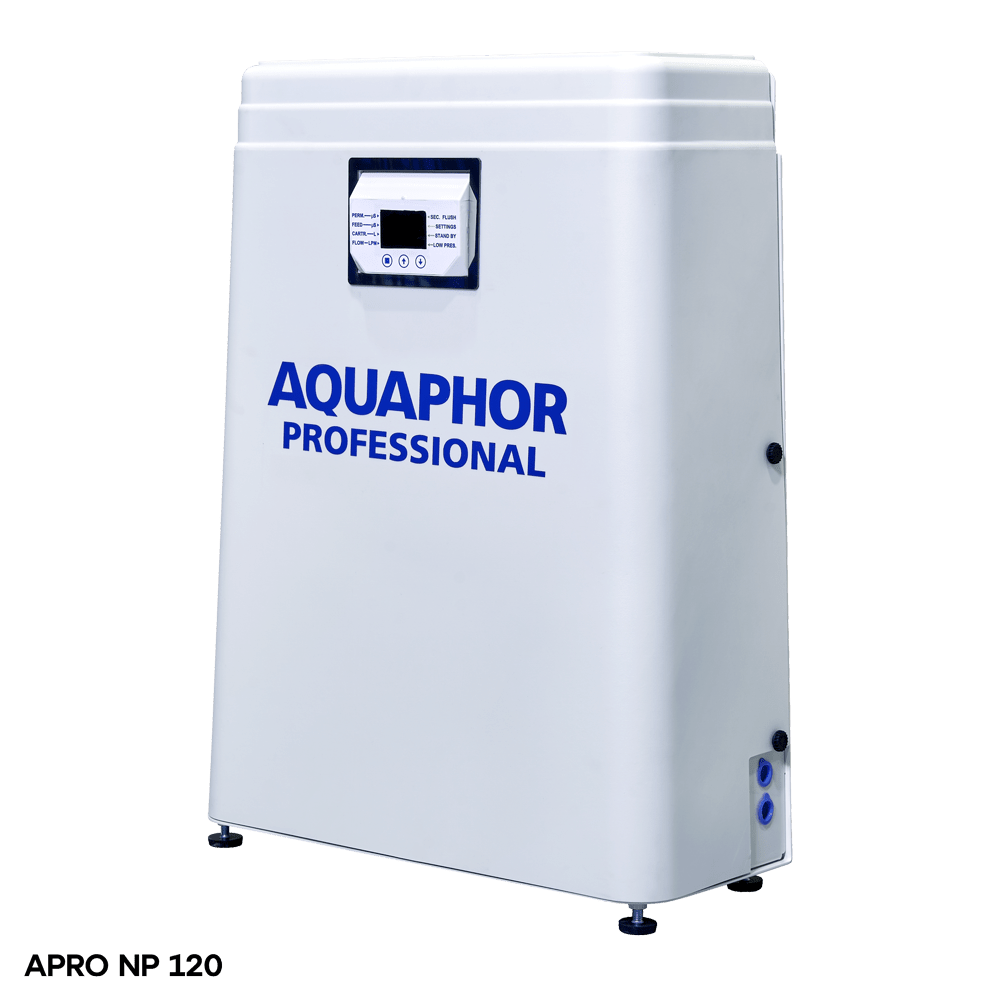

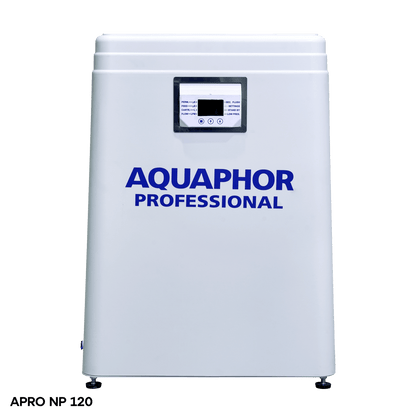

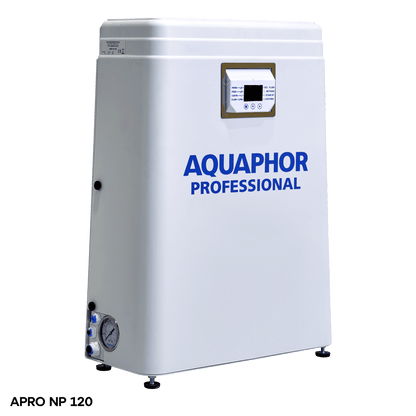

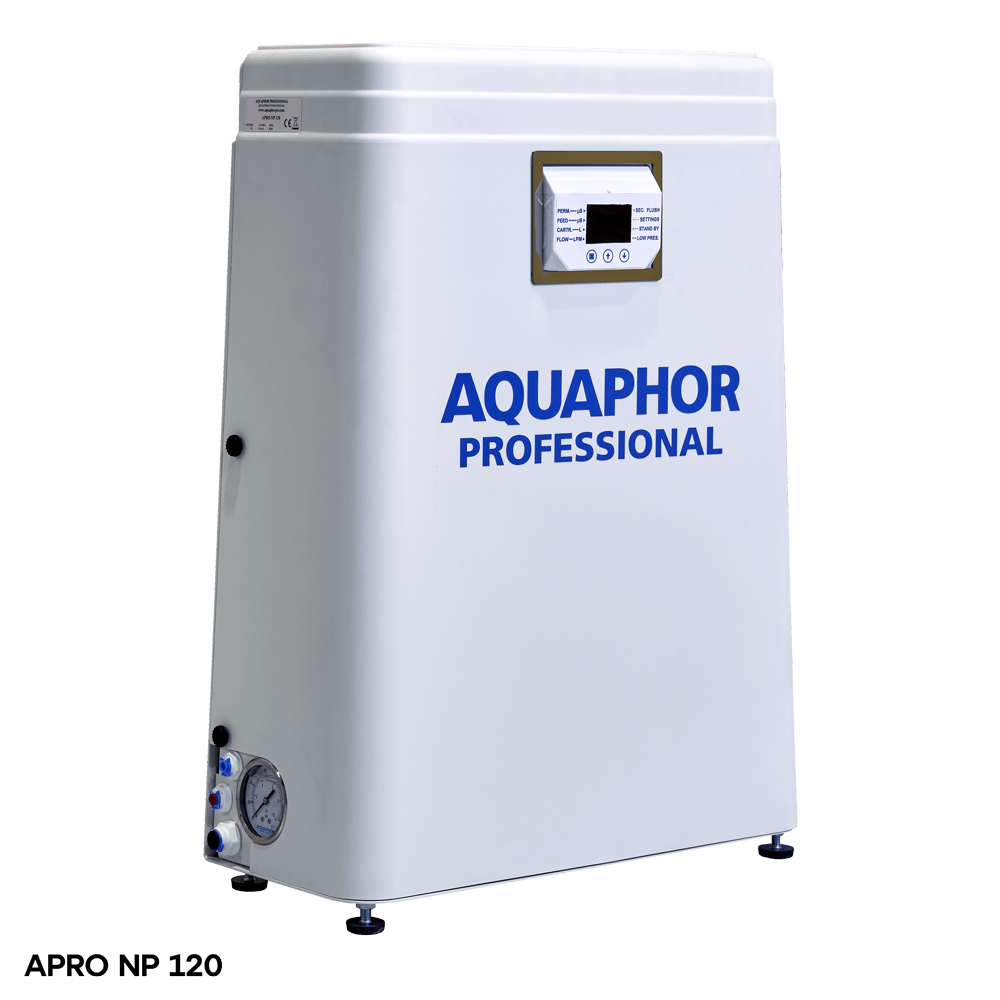

The AQUAPHOR APRO-NP-120 (Nano Purity 120) is a premium professional reverse osmosis water purification system designed to provide consistent, high-quality treated water for commercial coffee machines, cafés, restaurants, hotels, offices and other HoReCa applications.
Featuring an advanced dual-membrane reverse osmosis filtration system, patented energy-efficient pumping technology, integrated smart remineralisation and an intelligent electronic controller, the APRO-NP-120 combines powerful purification performance with precise water mineral management.
With a maximum nominal treated-water production capacity of 120 litres per hour, the system is suitable for commercial environments requiring a reliable water supply and improved protection against limescale formation.
Its innovative Smart Remineralisation System enables controlled adjustment of the mineral content in purified water, helping balance equipment protection with the water composition required for quality coffee extraction and beverage preparation.
Equipped with two reverse osmosis membranes and AQUAPHOR B520 high-capacity prefiltration, the system reduces dissolved salts, hardness minerals, chlorine-related impurities and other contaminants that may affect water quality or equipment performance.
The intelligent water recovery and recirculation technology is engineered to reduce wastewater production and energy consumption compared with conventional reverse osmosis configurations. AQUAPHOR specifies a standard system recovery of approximately 50%, with higher recovery possible under certain controlled configurations.
The integrated 2-litre permeate buffer tank provides temporary purified-water storage, supporting consistent water delivery during normal operation.
Constructed with a durable stainless steel enclosure, integrated pump system and electronic control panel, the APRO-NP-120 provides reliable performance in professional environments where space efficiency, operational consistency and maintenance accessibility are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AQUAPHOR |
| Product Name | APRO-NP-120 |
| Alternative Product Name | Nano Purity 120 |
| Model / Product Code | 519457 |
| Product Range | AQUAPHOR Professional – APRO NP Series |
| Product Category | Water Filtration Systems |
| Subcategory | Commercial Reverse Osmosis Systems |
| Equipment Type | Professional Reverse Osmosis Water Purification System |
| Filtration Technology | Reverse Osmosis with Smart Remineralisation |
| Maximum Nominal Permeate Flow | 120 Litres per Hour |
| Nominal Permeate Flow | 2 Litres per Minute |
| Reverse Osmosis Membranes | 2 |
| Membrane Series | AQUAPHOR 600 GPD-Class Membranes |
| Membrane Part Number | Confirm Against Supplied Unit |
| Prefiltration Cartridge | AQUAPHOR B520 / B520 PRO CarbFiber |
| Prefiltration Capacity | Up to 150,000 Litres – Manufacturer Catalogue |
| Maximum Feedwater TDS | 1,500 ppm |
| Salt Reduction | Up to 95% Before Remineralisation |
| Standard System Recovery | Approximately 50% |
| High-Recovery Operation | Higher Recovery Possible Under Specified Conditions |
| Smart Remineralisation | Yes |
| Mineral Content Adjustment | Adjustable |
| TDS Monitoring | Supported |
| Electronic Controller | Integrated Smart Controller |
| Pump System | Integrated Energy-Efficient Pumping and Recirculation |
| Integrated Storage Tank | 2-Litre Permeate Buffer Tank |
| Incoming Water Pressure | 1–4 bar |
| Electrical Supply | 230V AC / 24V DC via Integrated Adapter |
| Nominal Electrical Power | 0.12 kW – Manufacturer Catalogue |
| Electrical Frequency | Confirm from Equipment Rating Label |
| Installation Type | Professional Fixed Installation / Wall-Mountable Configuration |
| Water Inlet Connection | 3/8 Inch |
| Treated Water Outlet | 1/4 Inch |
| Concentrate Drain | 1/4 Inch |
| Drainage Requirement | Required |
| Enclosure Material | Stainless Steel |
| Colour / Finish | Stainless Steel |
| Dimensions (L × W × H) | 500 × 200 × 660 mm |
| Product Weight | Approximately 28 kg |
| Salt Regeneration | Not Required |
| Maintenance | Replaceable Prefiltration Cartridge and RO Membranes |
| Recommended Application | Professional Coffee Equipment and Commercial Water Treatment |
| Manufacturer | AQUAPHOR International OÜ |
| Country of Origin | Verify Against Supplied Unit |
| Warranty | Subject to Manufacturer / UAE Supplier Terms |
Water Filtration and Treatment Functions
| Function | Application |
|---|---|
| Reverse Osmosis Purification | Reduces dissolved salts and various unwanted contaminants |
| Water Hardness Reduction | Reduces calcium and magnesium associated with scale formation |
| Limescale Prevention | Helps protect heating elements, boilers, valves and water circuits |
| Sediment Prefiltration | Reduces particles and suspended impurities |
| Carbon Prefiltration | Reduces chlorine-related contaminants and unwanted tastes |
| Dual-Membrane Treatment | Supports high-capacity commercial water purification |
| Smart Remineralisation | Adjusts residual mineral content after purification |
| TDS Monitoring | Supports monitoring of dissolved-solids concentration |
| Intelligent Pump Control | Supports controlled system operation |
| Water Recovery Management | Helps optimise purified-water production relative to wastewater |
| Membrane Recirculation | Supports membrane performance and controlled concentrate management |
| Buffer Water Storage | Provides short-term storage using the integrated 2L tank |
| Equipment Protection | Helps reduce mineral deposits in connected appliances |
| Beverage Water Preparation | Supports controlled mineral composition for coffee and hot beverages |
| Automated Operation | Enables continuous system control with reduced manual intervention |
Key Product Features
-
120L/Hour Purification Capacity: Provides a nominal treated-water production capacity suitable for commercial beverage preparation and professional kitchens.
-
Dual Reverse Osmosis Membranes: Two high-capacity membrane elements deliver efficient removal of dissolved salts and hardness minerals.
-
Smart Remineralisation Technology: Allows adjustment of final treated-water mineral content to support beverage quality and equipment protection.
-
Up to 95% Salt Reduction: Manufacturer-stated reduction before remineralisation, subject to operating conditions.
-
High-Capacity B520 Prefiltration: CarbFiber cartridge technology supports membrane protection and reduction of incoming contaminants.
-
Intelligent Electronic Controller: Automates important system operating functions and supports performance monitoring.
-
Integrated TDS Monitoring: Supports control and assessment of treated-water dissolved-solids concentration.
-
Energy-Efficient Pump Technology: Designed to optimise circulation and minimise unnecessary energy consumption.
-
Advanced Water Recovery Management: Intelligent control helps reduce wastewater under suitable operating conditions.
-
Integrated 2L Buffer Tank: Provides limited purified-water storage to support system operation.
-
1–4 Bar Feedwater Pressure: Designed to operate within the manufacturer's specified incoming pressure range.
-
Stainless Steel Enclosure: Durable protective housing suitable for professional kitchen installations.
-
Compact Space-Saving Construction: Designed for installation in commercial kitchens, equipment areas and technical spaces.
-
Low-Maintenance Operation: Automated controls and replaceable filtration components simplify routine servicing.
-
Scale Protection: Helps minimise mineral deposits affecting coffee machine boilers and water systems.
-
Controlled Beverage Water Quality: Remineralisation supports consistent coffee extraction when correctly commissioned.
-
Salt-Free Water Purification: Does not require conventional resin regeneration salt.
-
Professional HoReCa Application: Designed for cafés, restaurants, hotels and commercial beverage environments.
Included Components and Accessories
| Component | Description |
|---|---|
| Main Stainless Steel Enclosure | Protective housing containing the water purification system |
| 2 × Reverse Osmosis Membranes | High-capacity membrane filtration elements |
| AQUAPHOR B520 Prefiltration Module | High-capacity incoming water filtration |
| Smart Remineralisation Module | Controls mineral composition of treated water |
| Integrated Pump System | Provides membrane pressure and water recirculation |
| Electronic Controller | Automatic operation and system monitoring |
| TDS Monitoring System | Supports measurement of dissolved solids |
| 2L Permeate Buffer Tank | Integrated temporary purified-water storage |
| Pressure Monitoring and Protection Components | Support safe operating conditions |
| Concentrate Management Valves | Control wastewater and membrane flushing |
| Water Connection Points | Connections for feedwater, treated water and concentrate |
| Electrical Power Adapter | Supplies required DC power from AC mains |
| Installation Documentation | Installation and maintenance instructions, subject to supply package |
Recommended Applications
Ideal for professional espresso machines, bean-to-cup coffee machines, automatic coffee vending systems, commercial beverage dispensers, restaurants, cafés, hotel beverage stations, catering operations and professional kitchens.
The APRO-NP-120 is particularly suitable for businesses where controlled mineralisation, consistent water quality and limescale protection are critical to appliance reliability and beverage quality.
For professional coffee equipment, the treated water should be commissioned to the machine manufacturer's recommended hardness, alkalinity, mineral content and other water-quality specifications before use.
