Description
Model / Product Code: 523244

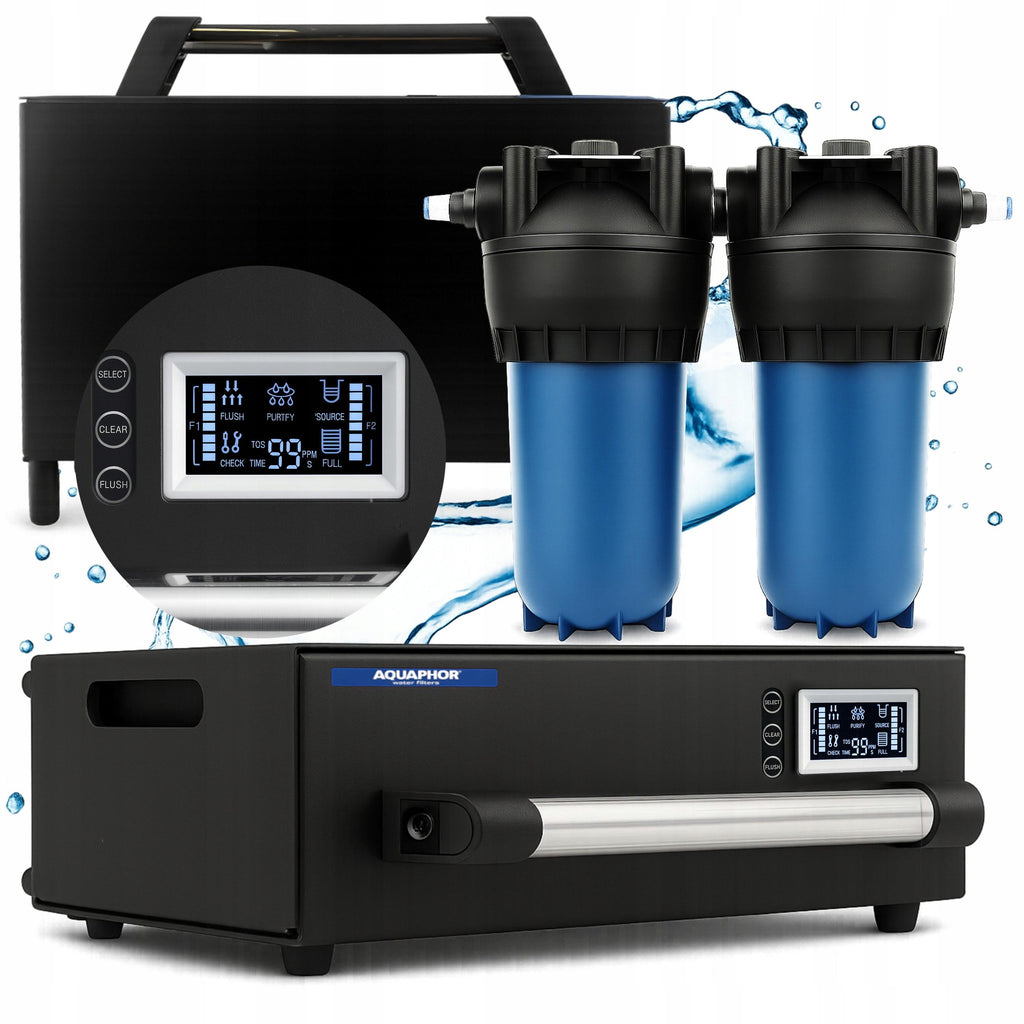

The AQUAPHOR APRO 100 PRO SST is a premium, professional-grade reverse osmosis water purification system designed to provide reliable, high-quality treated water for commercial beverage preparation, professional coffee machines, hotels, restaurants, cafés and other HoReCa applications.
Featuring an advanced reverse osmosis membrane filtration system, durable stainless steel protective enclosure, integrated feed pump, intelligent electronic monitoring and adjustable mineralisation bypass, the APRO 100 PRO SST combines high-performance water purification with compact, energy-efficient operation.
With a maximum purified-water production capacity of 100 litres per hour, the system is designed to support professional environments requiring consistent water quality, reduced hardness and reliable protection against limescale formation.
Its advanced AQUAPHOR ULP3230-1000 reverse osmosis membrane reduces dissolved salts, calcium, magnesium and a wide range of unwanted impurities, helping protect coffee machine boilers, heating elements, valves and internal water circuits from mineral deposits.
The innovative adjustable mineralisation bypass system allows operators to blend a controlled quantity of incoming water with purified water, helping achieve the desired residual mineral concentration for coffee extraction, beverage taste and equipment protection.
Equipped with an integrated electronic control panel, digital screen and inline TDS monitoring, the system provides convenient operational monitoring and supports planned maintenance.
The prefiltration system incorporates a 5-micron polypropylene sediment cartridge and a 5-micron carbon cartridge, reducing particulate matter and chlorine before water enters the reverse osmosis membrane.

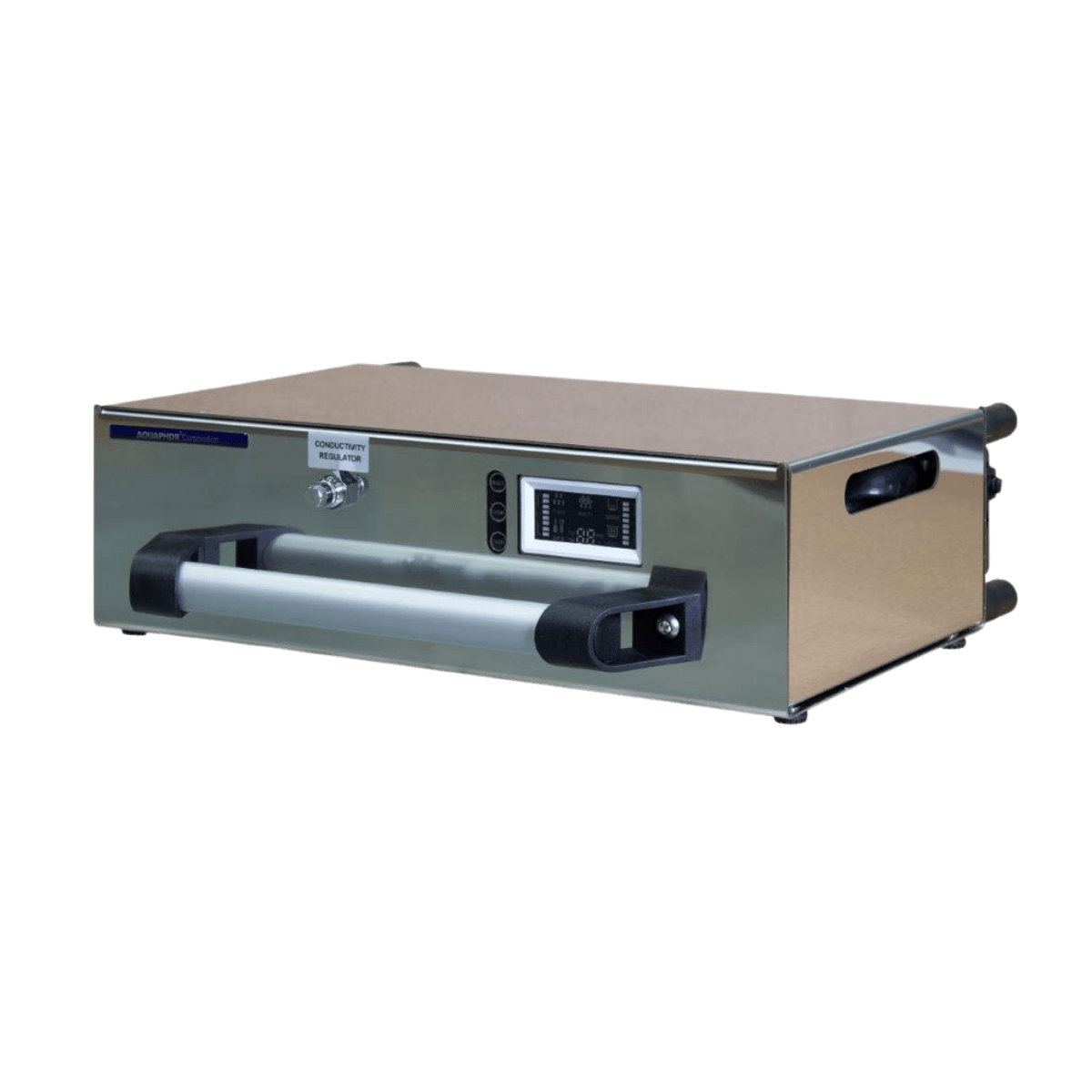

The premium stainless steel enclosure provides a durable, corrosion-resistant protective housing, making the system particularly suitable for professional service environments where equipment protection, easy cleaning and long-term durability are important.
Designed as an ultra-compact Plug & Play water purification solution, the APRO 100 PRO SST incorporates its filtration components, feed pump, membrane and electronic controls within a space-efficient enclosure measuring only 420 × 370 × 125mm.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AQUAPHOR |
| Product Name | APRO 100 PRO SST |
| Model Number / SKU | 523244 |
| Product Range | AQUAPHOR Professional – APRO 100 Series |
| Product Category | Water Filtration Systems |
| Subcategory | Commercial Reverse Osmosis Systems |
| Equipment Type | Professional Reverse Osmosis Water Purification System |
| Filtration Technology | Reverse Osmosis with Sediment and Carbon Prefiltration |
| Filtration Configuration | Two Prefiltration Stages + RO Membrane |
| Maximum Permeate Production | 100 Litres per Hour |
| Maximum Purified Water Flow | Approximately 1.67 Litres per Minute |
| Maximum Feedwater TDS | 1,500 ppm |
| Reverse Osmosis Membrane | AQUAPHOR ULP3230-1000 |
| Number of RO Membranes | 1 |
| Sediment Prefilter | 5-Micron Polypropylene Cartridge |
| Carbon Prefilter | 5-Micron Carbon Cartridge |
| Prefilter Housings | 2 × GROSS 10-Inch Housings |
| Feed Pump | Integrated |
| System Water Recovery | 50–75% |
| Mineralisation Adjustment | Adjustable Bypass |
| Bypass Remineralisation | Yes |
| Water Quality Monitoring | Inline TDS Monitoring |
| Control System | Electronic Controller |
| Display | Integrated Digital Screen |
| Prefilter Monitoring | Supported by APRO 100 PRO Series Controller |
| Manufacturer Power Consumption Entry | 0.06 kWh – Electrical Rating to Be Confirmed |
| Electrical Voltage | Pending Manufacturer Verification |
| Electrical Frequency | Pending Manufacturer Verification |
| Enclosure Material | Stainless Steel |
| Enclosure Type | Protective Metal Case |
| Colour / Finish | Stainless Steel |
| Dimensions (L × W × H) | 420 × 370 × 125 mm |
| Dimensions in Centimetres | 42 × 37 × 12.5 cm |
| Product Weight | Approximately 18 kg – Retailer Listed |
| Installation Type | Compact Professional Water Supply Installation |
| Water Inlet Connection | Required |
| Treated Water Outlet | Required |
| Drainage Connection | Required for RO Reject Water |
| Regeneration Salt | Not Required |
| Cartridge Replacement | Replaceable Prefilters and RO Membrane |
| Recommended Application | Professional Beverage Equipment and HoReCa |
| Manufacturer | AQUAPHOR International OÜ |
| Warranty | Subject to Manufacturer / Supplier Terms |
Water Filtration and Treatment Functions
| Function | Application |
|---|---|
| Reverse Osmosis Purification | Reduces dissolved salts and a wide range of unwanted impurities |
| Water Hardness Reduction | Reduces calcium and magnesium hardness |
| Limescale Prevention | Helps protect boilers, heating elements and internal water pathways |
| Sediment Filtration | Removes suspended particles through polypropylene prefiltration |
| Activated Carbon Filtration | Reduces chlorine and unwanted tastes and odours |
| TDS Reduction | Reduces dissolved solids in treated water |
| Mineralisation Adjustment | Adjusts residual mineral content using the bypass line |
| Water Quality Monitoring | Allows monitoring of treated water quality through the TDS meter |
| Prefilter Monitoring | Supports maintenance planning and filter replacement |
| High-Capacity Water Production | Provides up to 100 litres of treated water per hour |
| Water Recovery Management | Supports efficient use of feedwater through membrane recovery |
| Coffee Equipment Protection | Helps reduce scale-related maintenance and equipment downtime |
| Beverage Water Preparation | Supports controlled water composition for coffee and hot beverages |
Key Product Features
-
Professional Reverse Osmosis Technology: High-performance membrane purification reduces dissolved salts, hardness minerals and a range of contaminants.
-
100L/Hour Purification Capacity: Suitable for commercial beverage applications requiring a reliable supply of purified water.
-
AQUAPHOR ULP3230-1000 Membrane: Manufacturer-specified reverse osmosis membrane designed for efficient water purification.
-
Premium Stainless Steel Enclosure: Durable, corrosion-resistant housing provides additional protection for internal filtration and electronic components.
-
Adjustable Mineralisation Bypass: Allows users to regulate final mineral content for beverage taste and equipment protection.
-
Integrated Inline TDS Monitoring: Supports convenient monitoring of dissolved-solids concentration and treated water quality.
-
Smart Electronic Controller: Integrated control panel and digital display provide system operating information.
-
Two-Stage Prefiltration: Includes 5-micron sediment and carbon filters to protect the RO membrane.
-
Integrated Feed Pump: Supplies the operating pressure required for membrane filtration.
-
50–75% Water Recovery: Manufacturer-stated operating recovery range for model 523244.
-
Low-Energy Operation: Designed to provide professional reverse osmosis purification with reduced electricity consumption.
-
Ultra-Compact Design: Dimensions of 420 × 370 × 125mm support space-efficient installation.
-
Plug & Play System Configuration: Integrates major purification components into a compact, serviceable enclosure.
-
Maximum Feedwater TDS of 1,500 ppm: Designed to accommodate a range of incoming water qualities, subject to other manufacturer water requirements.
-
Professional Coffee Machine Protection: Helps minimise limescale buildup in boilers, heating elements and internal water circuits.
-
Controlled Beverage Water Quality: Adjustable bypass supports consistent water mineralisation for beverage preparation.
-
Replaceable Filtration Components: Individual sediment, carbon and membrane elements support scheduled servicing.
-
Salt-Free Purification: Does not require traditional water-softener regeneration salt.
-
Suitable for HoReCa Environments: Designed for restaurants, hotels, cafés and professional beverage preparation facilities.
Included Accessories and Components
| Component | Description |
|---|---|
| Stainless Steel Protective Case | Durable enclosure housing the filtration system |
| 2 × GROSS 10-Inch Prefilter Housings | Housings for sediment and carbon filtration |
| 5-Micron Polypropylene Cartridge | Sediment prefilter for suspended particles |
| 5-Micron Carbon Cartridge | Carbon prefilter for chlorine and unwanted taste reduction |
| AQUAPHOR ULP3230-1000 Membrane | Reverse osmosis membrane for dissolved-solids reduction |
| Integrated Feed Pump | Provides pressure for RO membrane operation |
| Adjustable Mineralisation Bypass Line | Controls residual mineral content of treated water |
| Electrical Control Panel | Integrated system controller |
| Digital Display | Screen for system operating information |
| Water Quality Monitoring | Inline TDS monitoring as part of the APRO 100 PRO system |
Recommended Applications
Ideal for professional espresso machines, bean-to-cup coffee machines, automatic coffee vending equipment, hotel beverage stations, restaurants, cafés, office coffee installations, beverage dispensers and other commercial water treatment applications.
The APRO 100 PRO SST is particularly suitable for operations requiring consistent water quality, reliable scale protection, adjustable mineralisation, and durable stainless steel equipment construction.
